Secure Iframe Guide

This guide provides instructions for integrating with the Secure Iframe functionality to display sensitive card information without PCI DSS compliance.

The Secure Iframe feature allows you to retrieve sensitive card details (card number, expiry date, CVV) in a PCI-compliant manner, regardless of your PCI compliance status. This is ideal for merchants who need to display card information to cardholders but do not have PCI DSS certification.

Step 1: Create PAN Token

Use the Create PAN Token API with the card_id parameter.

Request:

curl --location --request POST 'https://api-sandbox.uqpaytech.com/api/v1/issuing/cards/{card_id}/token' \
--header 'x-on-behalf-of;' \
--header 'Accept: application/json' \
--header 'x-auth-token: <your_access_token>' \
--header 'x-idempotency-key: <uuid>'

Response:

{
  "token": "pan_eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9",
  "expires_in": 60,
  "expires_at": "2025-11-13T10:31:00Z"
}

Note:

Each token can only be used once
Token expires after 60 seconds

Step 2: Prepare Styles (Optional)

You can customize the iframe appearance by providing CSS styles as a JSON object. The styles need be URL-encoded and passed as a query parameter.

const styles = {
    ".uq-card-number": {
        "color": "#2196F3",
        "font-size": "20px",
        "font-weight": "600",
        "font-family": "Arial, sans-serif"
    },
    ".uq-card-expiry": {
        "color": "#4CAF50",
        "font-size": "18px",
        "font-weight": "500"
    },
    ".uq-card-cvv": {
        "color": "#FF9800",
        "font-size": "18px",
        "font-weight": "500"
    },
    ".uq-card-container": {
        "background-color": "#f5f5f5",
        "border-radius": "12px",
        "padding": "20px",
        "border": "1px solid #e0e0e0"
    },
    ".uq-card-label": {
        "color": "#666666",
        "font-size": "14px"
    },
    ".uq-card-button": {
        "background-color": "#2196F3",
        "color": "#ffffff",
        "border": "none",
        "border-radius": "8px"
    },
    ".uq-card-button:hover": {
        "background-color": "#1976D2"
    },
    ".uq-card-tooltip": {
        "background-color": "#d4edda",
        "color": "#155724",
        "font-size": "12px",
        "border-radius": "4px"
    }
};

const encodedStyles = encodeURIComponent(JSON.stringify(styles));

Available CSS Selectors

Selector	Description	Supported Properties
`.uq-card-number`	Card number	color, font-size, font-family, font-weight
`.uq-card-expiry`	Expiry date	color, font-size, font-family, font-weight
`.uq-card-cvv`	CVV	color, font-size, font-family, font-weight
`.uq-card-container`	Container	background-color, padding, border, border-radius
`.uq-card-label`	Label text	color, font-size
`.uq-card-button`	Copy button	color, background-color, border, border-radius, padding
`.uq-card-button:hover`	Button hover state	color, background-color
`.uq-card-button:active`	Button active state	color, background-color
`.uq-card-tooltip`	Copy tooltip	color, background-color, font-size, border-radius

Supported CSS Properties

Global supported properties: color, background-color, font-size, font-family, font-weight, padding, margin, border, border-radius, text-align, line-height, letter-spacing

Step 3: Construct Iframe URL

Build the iframe source URL using the following pattern:

{iframe_domain}/iframe/card?token={pan_token}&cardId={card_id}&lang={lang}&styles={encoded_styles}

Parameters

Parameter	Type	Required	Description	Example
`iframe_domain`	string	Yes	Iframe service domain	`https://embedded-sandbox.uqpaytech.com`
`pan_token`	string	Yes	PAN token from Step 1	`pan_eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9`
`card_id`	string	Yes	Card identifier (must match token creation)	`7242a504-e43d-4b95-b4c8-f9fc5992d02b`
`lang`	string	No	Display language (default: en)	`en`, `zh`, `zh-TW`
`styles`	string	No	URL-encoded CSS styles JSON	URL-encoded JSON object

Environment Domains

Sandbox: https://embedded-sandbox.uqpaytech.com
Production: https://embedded.uqpay.com

Example

const iframeDomain = 'https://embedded-sandbox.uqpaytech.com';
const panToken = 'pan_eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9';
const cardId = '7242a504-e43d-4b95-b4c8-f9fc5992d02b';
const lang = 'en';
const styles = {
  ".uq-card-container": {
    "background-color": "#ffffff",
    "border": "1px solid #e0e0e0",
    "border-radius": "8px"
  }
};

const encodedStyles = encodeURIComponent(JSON.stringify(styles));
const iframeUrl = `${iframeDomain}/iframe/card?token=${panToken}&cardId=${cardId}&lang=${lang}&styles=${encodedStyles}`;

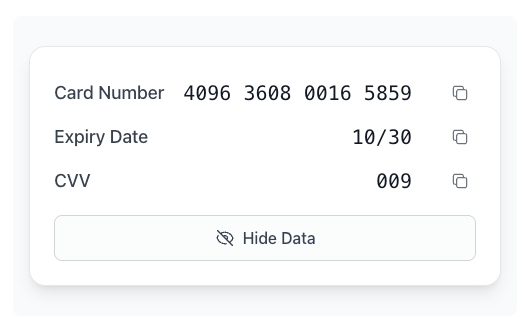

Step 4: Embed Iframe on Your Page

Add the iframe element to your HTML page:

<iframe
  src="${iframeUrl}"
  width="400"
  height="200"
  frameborder="0"
></iframe>

Sandbox tool for quick testing: https://embedded-sandbox.uqpaytech.com/iframe/preview/
